Twelve Color Cosmetic Cream Filling Machine 380V 50Hz 16.8KW

Brand Name : JYJ

Model Number : DK-12S

Certification : CE,ISO

Place of Origin : GUANGZHOU

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1/7 DAYS

Delivery Time : 7 DAYS

Packaging Details : WOODEN CASE

Warranty : 1 Year

After-sales : Online service

Conditon : New

Application : Filling

Automatic grade : Full-automatic

Motor type : AC Motor

Color : Silver

Material : SUS304

Contact Now

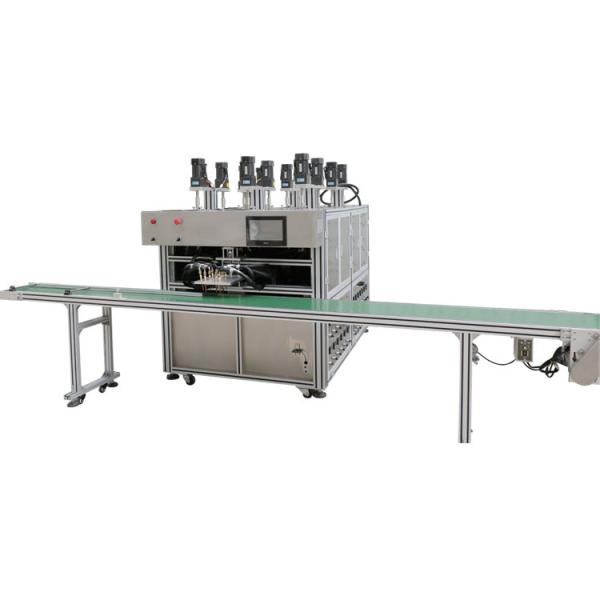

Multi-color Cream Filling Machine Twelve-color Filling Machine with Conveyor Belt

Description:

This machine is suitable for the filling of single color and multi-color plate lipstick, eye shadow cream, lipstick and other paste raw materials. It has the features of fast filling speed, accurate quantitative, high qualified rate, easy operation and convenient cleaning and color changing. Equipped with 3.8 meters conveyor belt.
When the 12 colors to be filled have the same dosage range, only the PLC interface is needed to set the parameters of the dosage to be filled.
When the 12 colors to be filled are not the same dosage, the dosage range of each color can be controlled individually by adjusting the nut at the back of the pump.
The heating and dosing of the 12 buckets can be controlled individually, and the on and off state can be selected.

Twelve Color Cosmetic Cream Filling Machine 380V 50Hz 16.8KW

Technical Parameters:

Input voltage	380V 50Hz
Power (output)	16.8KW
Sizes	180L125W168H[CM]
Drum volume	8L, up to 4.5kg of material.
Filling range	0.3ML≤ML≤10ML
Drum Material	Stainless steel 304
Fuselage Material	Aluminum profile + stainless steel
Maximum withstand voltage	8 KG/CM²
Nozzle Diameter	4mm/set
Net weight	280KG
Temperature range	Adjustable temperature: 0-150℃ Optimum use temperature 80-120℃.
Tank mixing speed	0～90 rpm
Countertop Size	The distance of the filling nozzle from the ground is 75H(CM), and it can be equipped with an assembly line for filling.
Number of holes in tray	11*14,total 154 holes, different products customized different number of holes
Plug spacing	≤4 mm
Production capacities	About 1500 molds/hour
Cylinder Accessories	SDA¢50X80-80 1PCS Taiwan Airtac
Cylinder Accessories	SCJ¢25X35 1PCS Taiwan ADB
Number of drums	12 buckets, 3 rows * 4/row
Motor power	90W
